The 250 Base Smart Maxi T-Bar™ is Australian designed and tested. It is used to suit 270 Double Brick Walls.
It is available in various stock lengths from 2700mm, 3000mm, 3300mm, 3600mm, 3900mm, 4200mm, 4500mm, 48000mm, 5100mm, 5400mm 6000mm, 6300mm and 9000mm. Please contact our office if you require shorter or longer lengths.

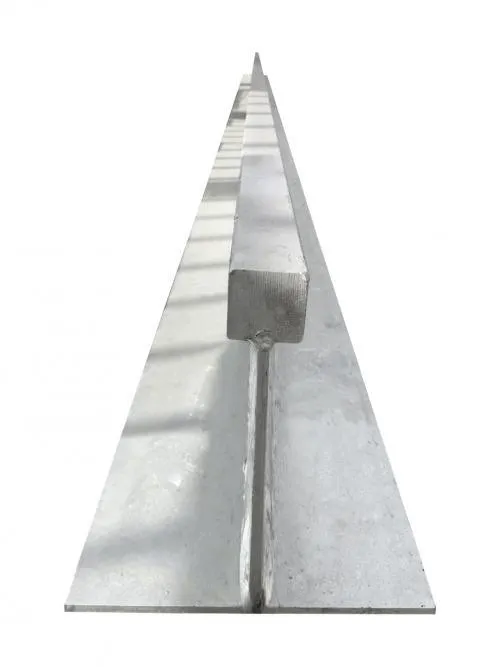

Similar to a traditional t bar, however, the 250 Base Smart Maxi T-Bar™ has a wider base and a solid 40 x 40 billet welded to the top to provide additional strength.

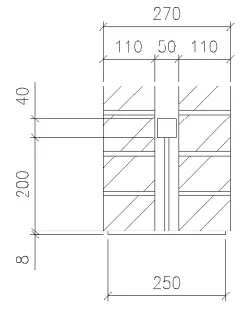

Engineer tested, the 250 Base Smart Maxi T-Bar™'s base plate is 250mm wide x 8mm thick, 200mm high x 8mm thick with a solid square 40mm x 40mm billet welded to the top.
Product Details:
- Complies with AS4100-1998 (Steel Structures), AS4680:2006 (Hot Dip Gal), AS1170.1:2002 (Loads)
- Australian Certified Innovation Patent Number 2020100066
Looking for the 210 Base Smart Maxi T-Bar for 230 Double Brick CAVITY Walls?
